Heavy Duty Battery Alligator Clip big size
Product Overview

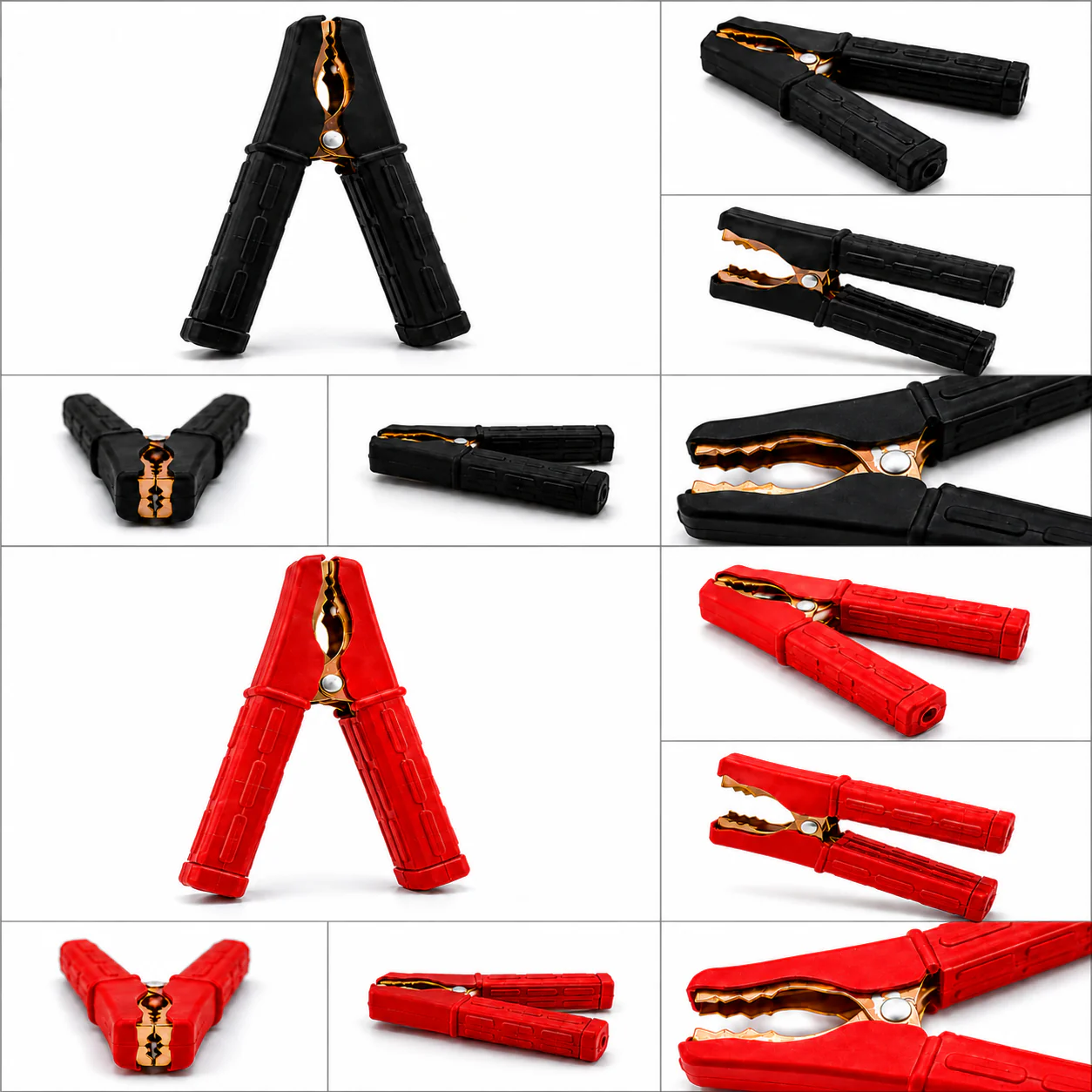

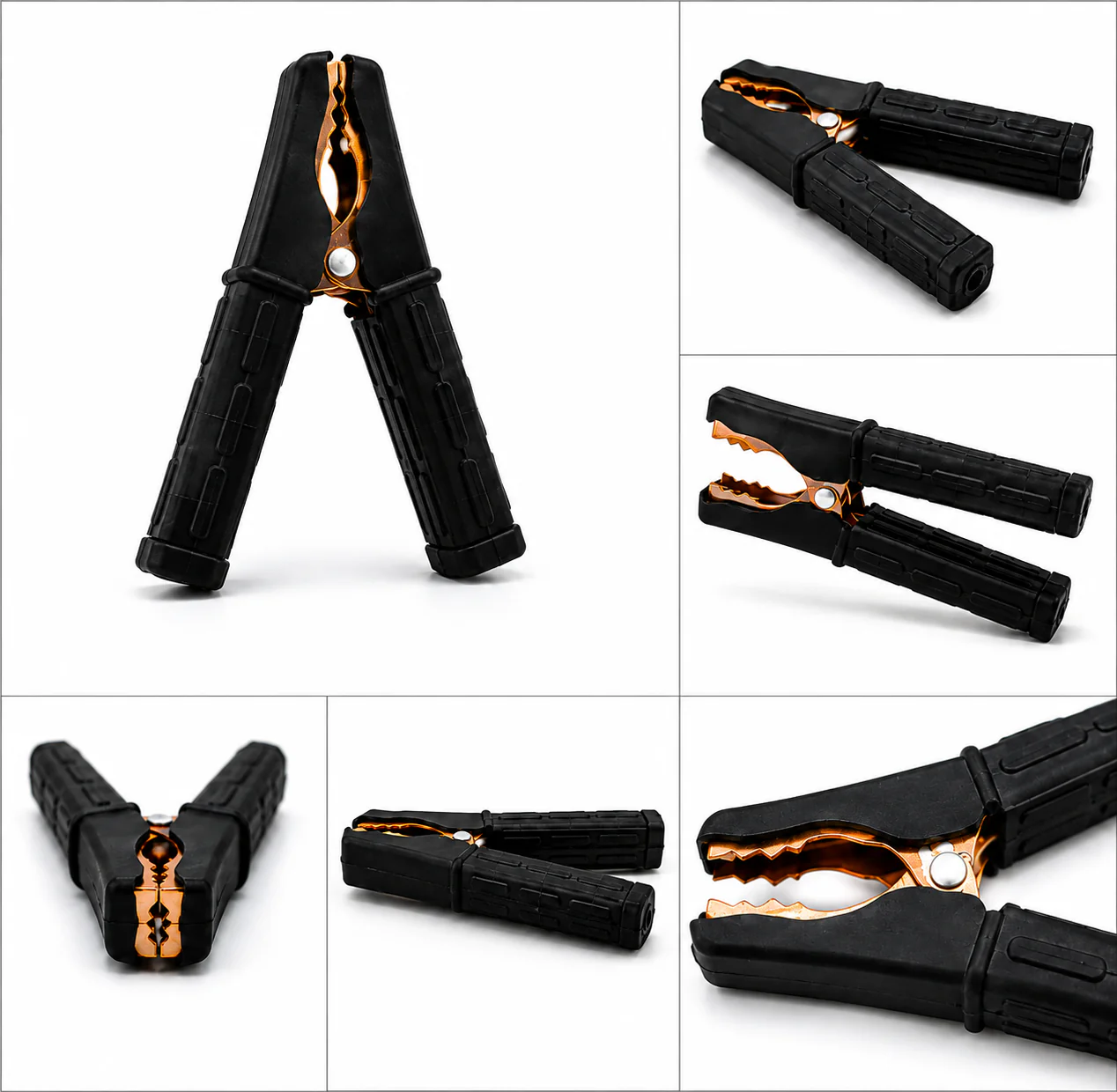

Heavy-duty insulated battery alligator clip designed for reliable temporary electrical connections in automotive, battery charging, solar power, testing, and electronic projects. Features strong spring tension and conductive metal jaws for secure contact and low resistance.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Battery Alligator Clip / Crocodile Clip |
| Body Material | Insulated ABS Plastic |
| Contact Material | Nickel-Plated Steel |
| Color | Black |
| Length | 95 mm |
| Width | 25 mm |
| Jaw Length | 30 mm |
| Maximum Jaw Opening | 18 mm |
| Front Width | 18 mm |
| Weight | Approx. 40–60 g |
| Connection Type | Crimp / Solder Cable Connection |
Electrical Rating
| Parameter | Value |
|---|---|
| Rated Voltage | Up to 80 V DC |
| Recommended Current | 50 A Continuous |
| Peak Current | 80A Maximum |
| Contact Resistance | Low Resistance Metal Contact |
| Operating Temperature | -10°C to +950°C |
Note: Actual current capacity depends on wire size, connection quality, and operating temperature.
Applications
- Battery chargers
- Automotive battery testing
- Jump starter cables
- Solar panel systems
- UPS battery maintenance
- Laboratory power supplies
- Electronic prototyping
- DIY projects
- DC power distribution
- Educational electronics kits
- Industrial maintenance equipment
Features
✔ Fully insulated handle for safety
✔ Strong spring-loaded grip
✔ Serrated jaws for secure connection
✔ Durable impact-resistant housing
✔ Easy cable installation
✔ Compact lightweight design
✔ Suitable for low-voltage DC systems
Package Includes
- 1 × Small Battery Alligator Clip
