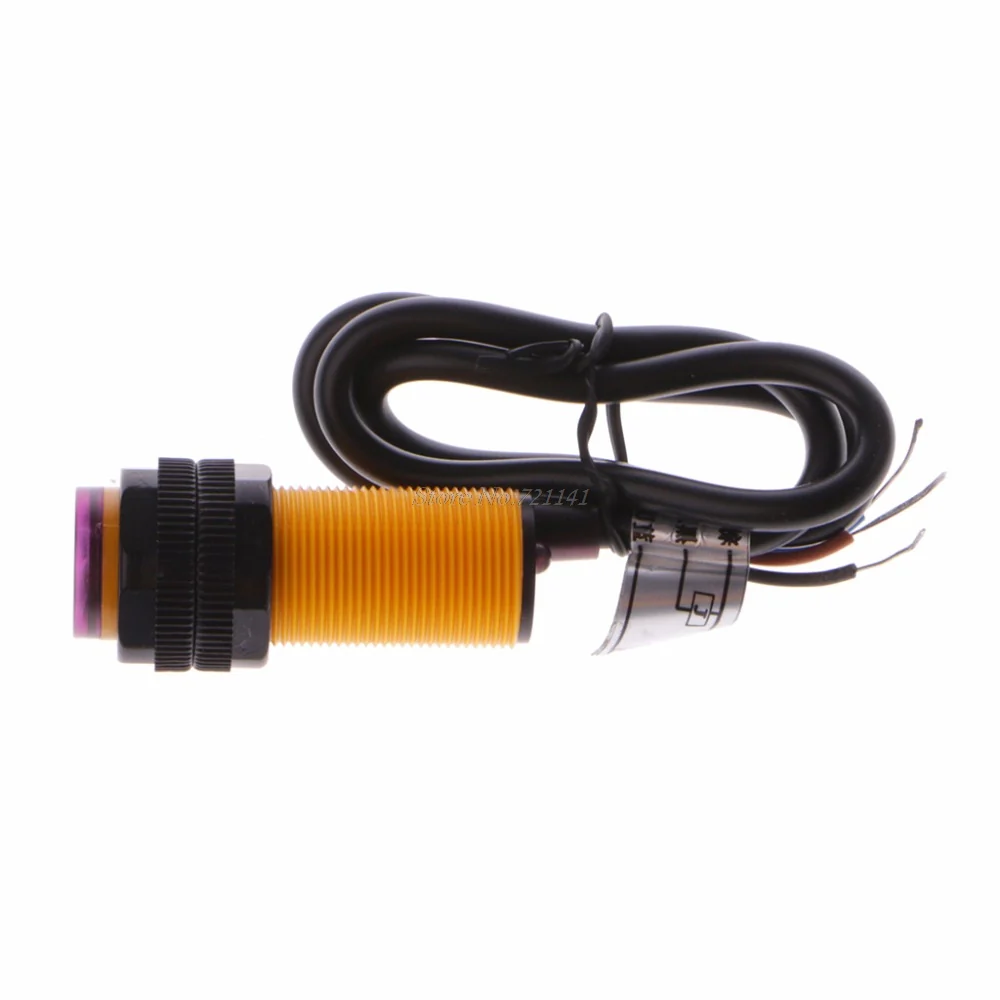

Infrared Proximity Sensor (6V to 30V)

This is infrared proximity sensor. It has an adjustable range from up to 40cm and a digital output with indicating LED. It works on wide range of DC supply voltage (10:30 V). This make it suitable for high voltage control applications such as PLC

Specifications

• Supply Voltage: 6:30VDC
• Supply Current: 25mA
• Max Current: 100mA
• Response time: < 2ms
• Detection range from 5-30 cm adjustable
• Pointing angle: ≤ 15 °
• Type: NPN
• Dimensions :  D= 17 mm - L= 69 mm
• Lead length: 1 m
• Working environment temperature: -25℃+55℃
• Case Material: Plastic

​Wiring

Brown wire:  DC voltage supply (6 : 30 V)

Blue wire: Ground

Black wire: output signal
