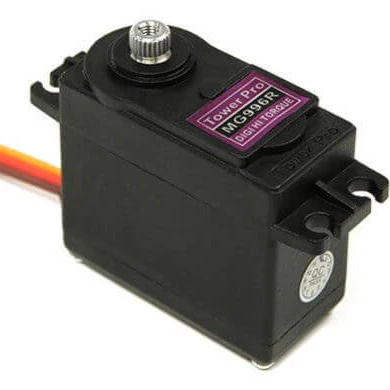

MG996R High Torque Servo Motor (180° Rotation) (Full Metal Gear)
MG996R High Torque Servo Motor (180° Rotation)
Product Description
The MG996R High Torque Servo Motor is a powerful and reliable actuator designed for precise angular control up to 180 degrees. Built with metal gears and a high-performance DC motor, it delivers strong torque and excellent durability, making it ideal for robotics, automation, and RC applications.
This servo provides smooth and accurate positioning using standard PWM control signals, making it fully compatible with microcontrollers such as Arduino, Raspberry Pi, and other embedded systems.
Key Features
- Rotation Angle: 0° – 180° (Precise Position Control)
- High Torque Output up to 11–13 kg·cm
- Durable metal gear system
- Fast response and stable performance
- Standard PWM control interface
- Wide voltage range operation
- Easy to integrate in various projects
Technical Specifications
| Parameter | Value |
|---|---|
| Model | MG996R |
| Operating Voltage | 4.8V – 7.2V |
| Torque | 9.4 kg·cm (4.8V) / 11–13 kg·cm (6V) |
| Speed | 0.19 sec/60° (4.8V) / 0.15 sec/60° (6V) |
| Rotation Range | 180° |
| Control Signal | PWM (50Hz) |
| Gear Type | Metal Gears |
| Connector | 3-pin (VCC / GND / Signal) |
| Weight | ~55g |
Pin Configuration
- Brown → GND
- Red → VCC (5V–6V)
- Orange → Signal (PWM)
Applications
- Robotic arms
- RC cars, boats, and airplanes
- Automation systems
- Smart projects (Arduino / IoT)
- Camera positioning systems

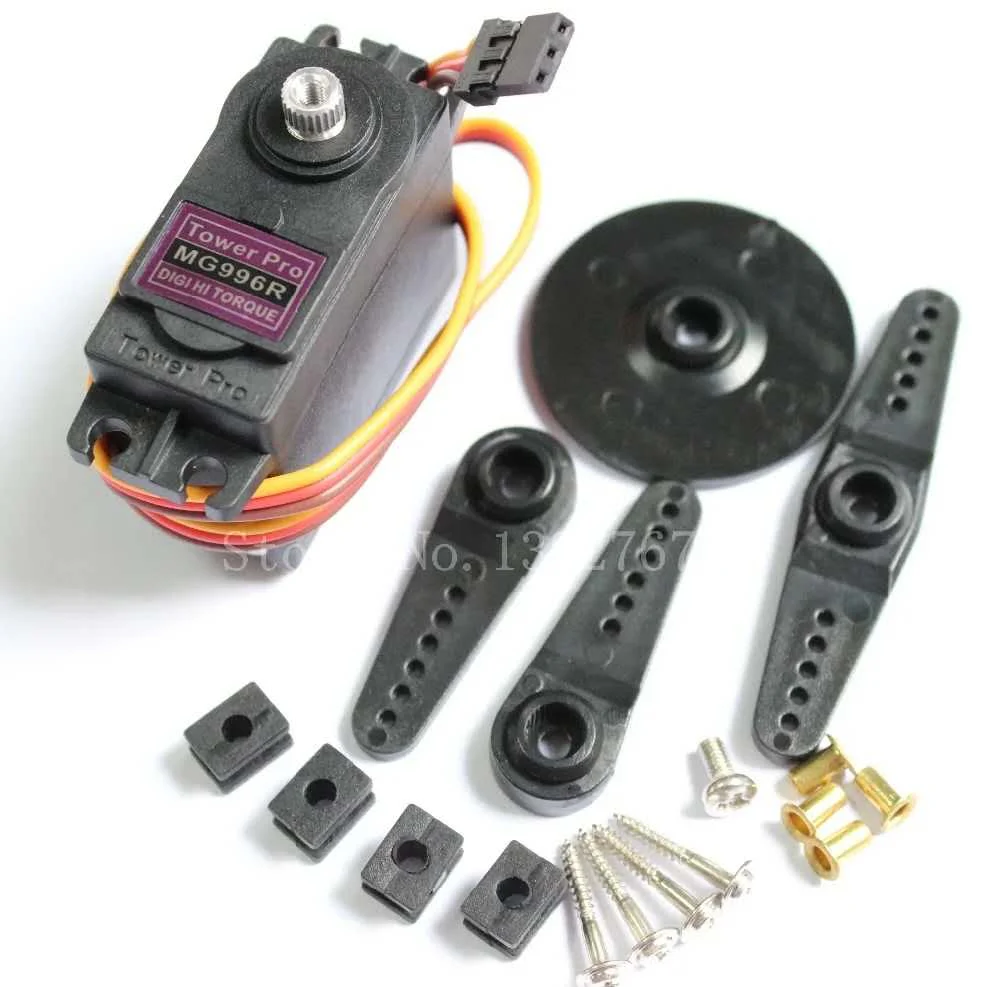

Package Includes
- 1 × MG996R Servo Motor
- Servo Horn Set (Arms & Disc)
- Mounting Screws & Accessories
Why Choose MG996R
The MG996R offers an excellent balance between power, precision, and cost, making it one of the most popular servos for both beginners and professionals.
Original Towerpro servo
