R17-A Small Size Desktop Reader Writer ( range 40 cm ) .
Product Description

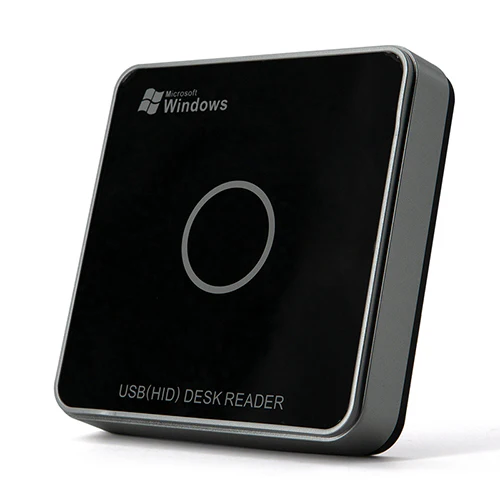

R17-A Small Size Desktop Reader Writer
R17-A is a small desktop reader & writer, compatible with ISO 18000-6C standards. Working frequency 802MHz to 928MHz. It is a small integrated reader & writer which use for short-distance identification or background card issuer management, very small and easy portable. Widely used in attendance / access control management, library management, consumer management and other fields.
Application:
Logistics and Warehouse management;
Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other field: club management ,library , student school rolls, attendance management and swimming pool system etc.
Product Features:
Small and square shape, suitable for indoor desk
Fast data read rate;
Multi-zone and multi-label reading;
Multi-protocol compatibility;
| Parameters | |
| Working frequency:： | CN standard（820～925MHz） |
| US standard（802～928MHz） | |
| Other frequency standards (customized) | |
| Protocol:： | ISO18000-6C (EPC GEN2) |
| Operation Mode： | Fixed Frequency or FHSS or Software Programmable |
| Antenna parameter ： | 2dBi circularly polarized antenna (built-in) |
| Output power： | 12.5dBm～26dBm（Adjustable by software） |
| Reader&write range： | Reading Rang(Max)：0.5m（related to the card or the environment） |
| Writing Rang(Max)：0.2m（related to the card or the environment） | |
| Working mode： | Active mode |
| Passive mode | |
| Answer mode (Not recommend) | |
| Interface | |
| Voltage： | DC +5V |
| Data interface： | |
| USB to virtual keyboard input | |
| USB to virtual serial port(Customized) | |
| Working environment | |
| Working Temp： | -20℃～55℃ |
| Storage Temp： | -40℃～85℃ |
| Physical parameter | |
| Size： | 107mm×107mm×23mm |
| Net/gross Weight： | 150g/250g |
| Accessories | |
| Cable： | USB cable |
| SDK： | Free SDK |
