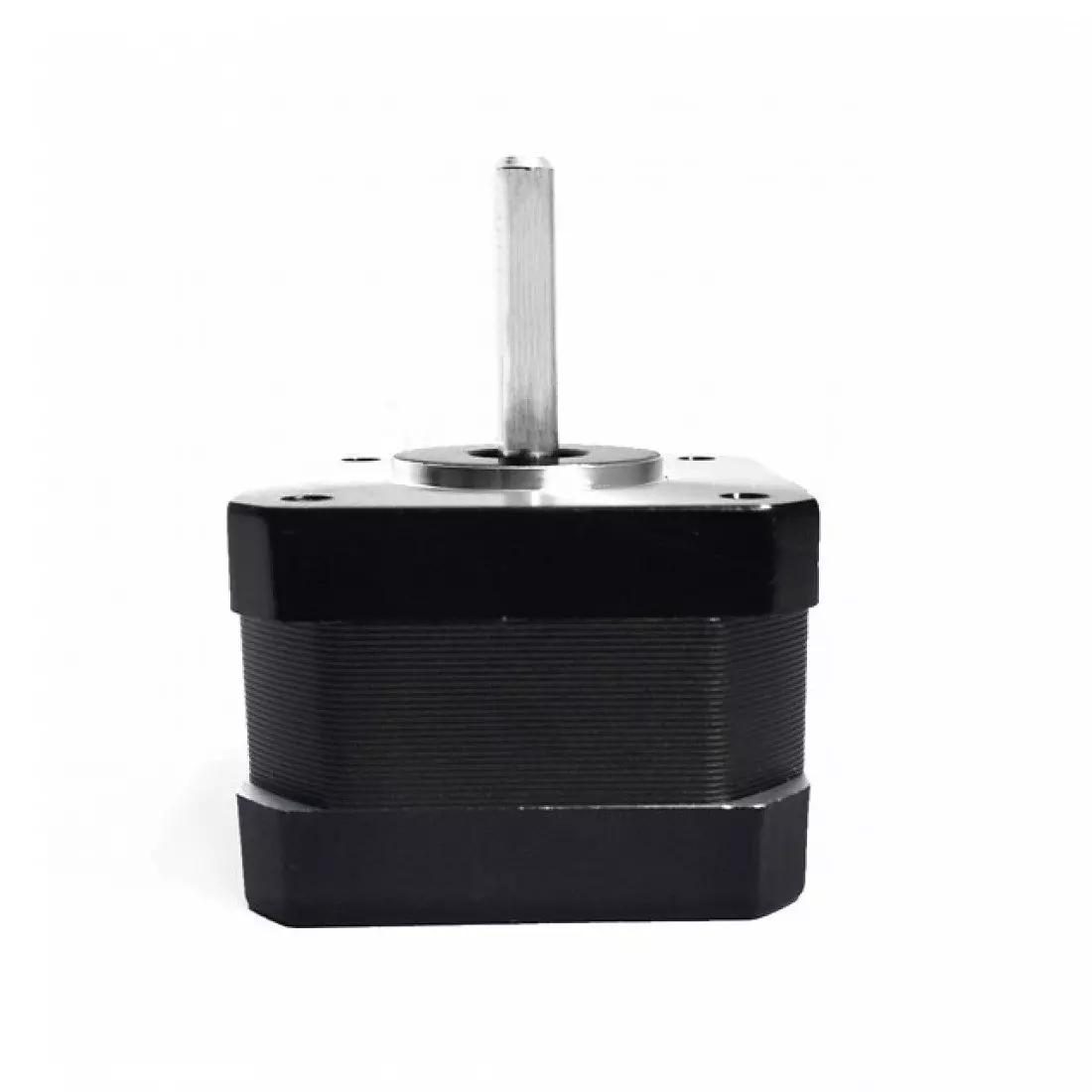

Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M
42HS32 This 4-wire bipolar stepper has 1.8° per step for smooth motion and 3.2 kg.cm holding torque. The motor was specified to have a max current of 350mA so that it could be driven easily with
Some nice details include a ready-to-go cable and a machined drive shaft (so you can easily attach items).
- 200 steps per revolution, 1.8 degrees
- Bipolar stepper
- 4-wire, 12 inch leads
- 42mm/1.65" square body
- 31mm/1.22" square mounting holes, 3mm metric screws (M3)
- 12V rated voltage (you can drive it at a lower voltage, but the torque will drop)
- Max current: 1.0 A
- 32 N*cm, 3.2 Kg*cm holding torque per phase
- 35 ohms per winding
$136.50
Original: $390.00
-65%Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M—
$390.00
$136.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
42HS32 This 4-wire bipolar stepper has 1.8° per step for smooth motion and 3.2 kg.cm holding torque. The motor was specified to have a max current of 350mA so that it could be driven easily with
Some nice details include a ready-to-go cable and a machined drive shaft (so you can easily attach items).
- 200 steps per revolution, 1.8 degrees
- Bipolar stepper
- 4-wire, 12 inch leads
- 42mm/1.65" square body
- 31mm/1.22" square mounting holes, 3mm metric screws (M3)
- 12V rated voltage (you can drive it at a lower voltage, but the torque will drop)
- Max current: 1.0 A
- 32 N*cm, 3.2 Kg*cm holding torque per phase
- 35 ohms per winding
